Rockin’ Patent – Roland Corporation’s “Keyboard Device”

US Patent No. 8.445,765 – Roland Corporation – Keyboard Device - Patents Rock - Russell IP
  • Rockin’ Patent: US Patent No. 8,445,765
  • Filed: 5 January 2012
  • In the name of: Roland Corporation
  • Title: Keyboard Device

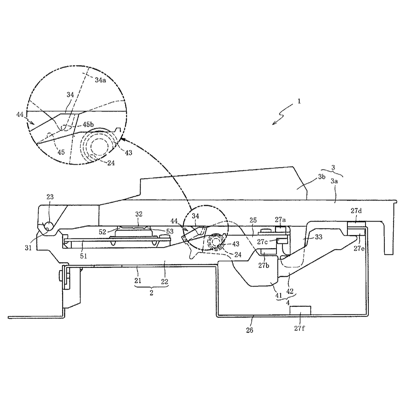

  • What’s claimed: “A keyboard device, comprising: a key, supported by a chassis in a free-rotation manner; a hammer, displaced rotationally corresponding to a key-pressing operation or a key-releasing operation of the key to provide an action load to the key; a protrusion, projected at a specific position on the hammer or the key, and displaced corresponding to the key-pressing operation or the key-releasing operation; a sliding surface, formed on any one of the chassis, the key, and the hammer, and having a flat surface or a curved surface inclined to a direction which is along a sliding direction of the protrusion in the key-pressing operation and gradually departs from a base portion of the protrusion, and where the protrusion slides thereon in the key-pressing operation or the key-releasing operation; and a bump portion, formed in continuation with the flat surface or the curved surface, and raising up from the sliding surface towards a direction which is along a sliding direction of the protrusion in the key-pressing operation and approaches the base portion of the protrusion.”
  • Why this patent rocks: This patent appears to relate to Roland’s FP-10 digital piano, consisting of 88 keys. Roland Corporation claim that the FP-10’s PHA-4 keyboard ‘delivers the responsive feel of a fine acoustic piano, with every nuance whether you play hard or soft captured by Roland’s touch-detection technology.’ See here for a detailed take on the mechanics behind the Roland FP-10 and here for more general information.

If you’re a patent-savvy music tech business looking for patent help, get in touch with Russell IP here!

The information above is for general interest and information only and does not constitute legal advice.
